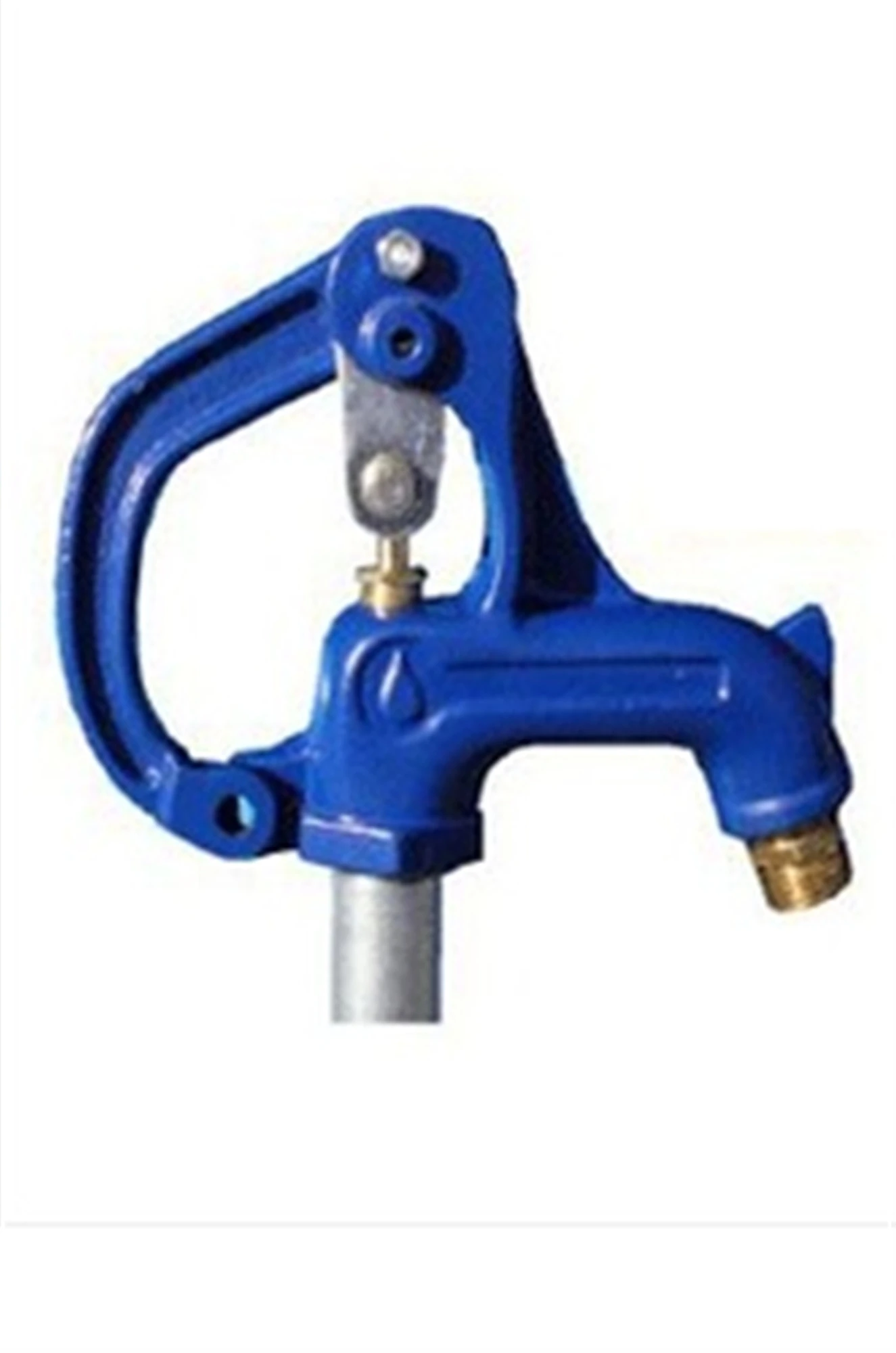

– Durable Cast Iron Head with bucket hook comes complete with a removable 3/4″ GHT brass garden connector._x000d_
– Large Handle can be held ?rmly in any position to regulate ?ow by means of a zinc plated thumb bolt and has a locking eye as a_x000d_
standard feature allowing the hydrant to be pad-locked in the closed position._x000d_
– Brass Operating Rod provided good corrosion resistance._x000d_
– Double O-ring Sealing System provides a positive seal between the hydrant head and operating rod. The O-Rings are easy replaced_x000d_
when required after many years of service, a great advantage over yard hydrants that use stem packing which is very di?cult to_x000d_
remove and clean out of the head casting._x000d_
– One piece brass pivot connector complete with a zinc plated square head set screw allows for easy adjustment of the linkage_x000d_
without disassembly._x000d_
– Zinc plated draw straps provide good corrosion resistance have smooth operation with limited play in the linkage._x000d_
– 6 By-Pass channels in No Lead Brass Valve Body o?er good ?ow rates, self draining bleeder port (tapped 1/8 FPT) prevents_x000d_
riser pipe and valve head from freezing._x000d_
– One Piece Plunger Buna-N-Rubber Molded over Brass Insert provides a positive seal and easy adjustment._x000d_
– 1″ Galvanized Stand Pipe_x000d_
– 3/8″ Steel Connecting Rod & Coupling_x000d_
– Max Pressure 125 PSI_x000d_
– Max Temperature 120?F
Weight: 16.37_x000d_
_x000d_
Overall Length: 75.3″
