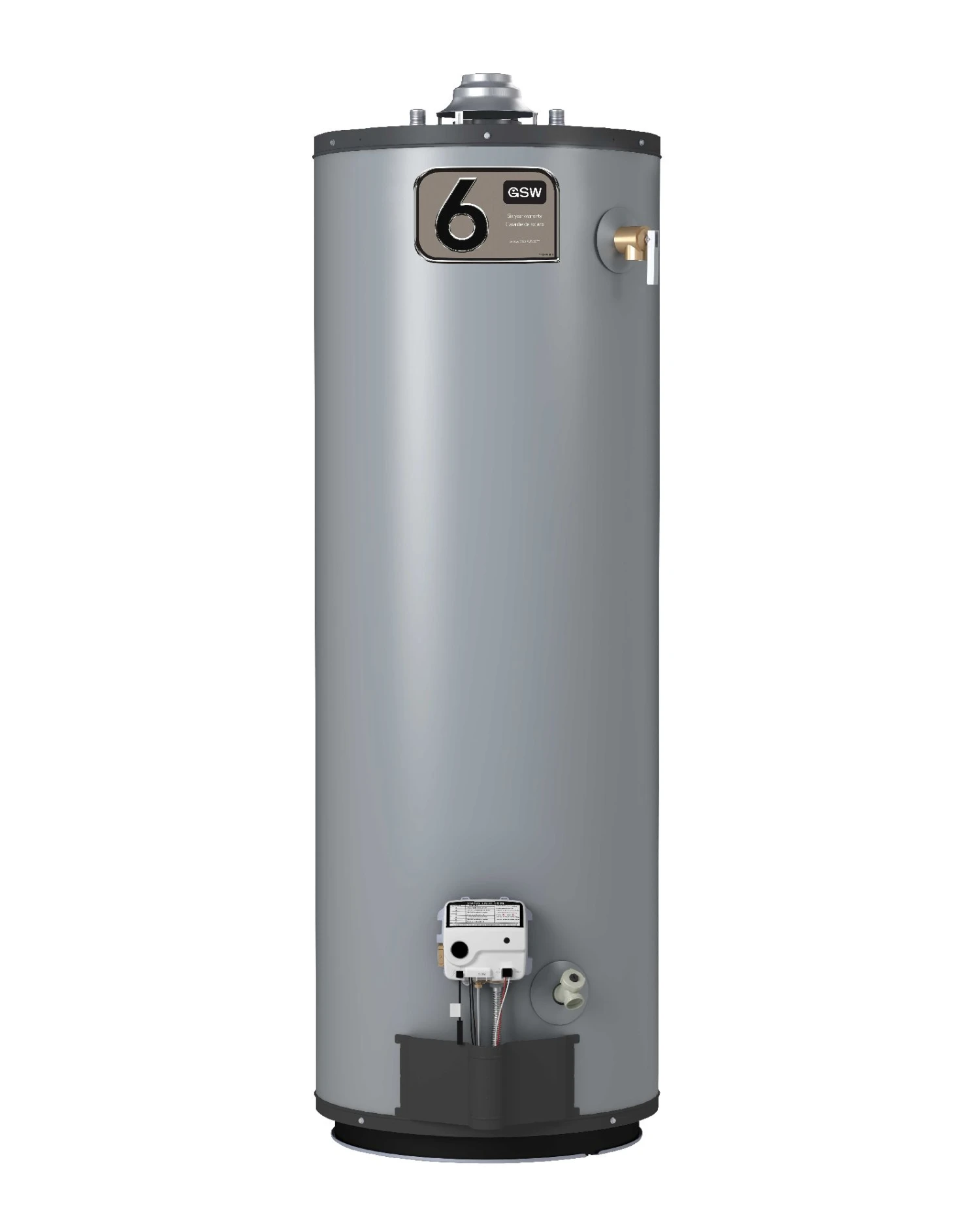

GSW 50 USG/189 L Atmospheric Vent 6-Year Natural Gas Water Heater

For this atmospheric vent natural gas water heater, air is drawn from inside the home and the exhaust is vented into a chimney or through the roof. This heater features Flame Guard Safety System, which reduces the risk of accidental fires involving flammable vapours from products such as gasoline, paint thinner or solvents. This 50 USG/189 L water heater features: a glass-lined tank to provide superior protection against the corrosive effects of hot water; heavy-duty anode rod for additional tank protection; turbulator dip tube, which reduces sediment build up at the bottom of the tank to prolong tank life; piezoelectric ignitor, which allows you to light the pilot without matches; a thermopile system, which provides a robust pilot to withstand environmental conditions such as down drafts; an LED indicator, which gives you visual confirmation the pilot is lit, and provides diagnostics and troubleshooting information; and a thermostat that allows for easy temperature adjustments. Maintenance is simple with an easy-to-access combustion chamber and conveniently located drain valve

The FlameGuard® Safety System protects the homeowner by trapping burning vapours within the water heaters combustion chamber through the exclusive ‘flame trap”
Glass-lined tank provides superior protection against corrosion
Turbulator diptube reduces sediment and build-up at the bottom of the tank
LED indicator gives confirmation that pilot is on by flashing continuously and provide diagnostics and troubleshooting
Easy temperature adjustments
Factory-installed plastic-lined heat trap nipples
Piezoelectric ignitor allows for lighting of the pilot without matches
Conveniently located T&P and drain valve
Top mounted heavy duty anode rod for added tank protection
Capacity: 189 L (50 USG)
Energy Factor: 0.61
First Hour Rating: 88 GPH (333 L)
Recovery Rate (at 90°F Temperature Rise): 42 GPH (159 LPH)
Gas Input: 40,000 BTU/hr
Altitude Rating: 10,100’ (3,078 m)
Warranty Information: 6 year tank, 6 year parts
Dimensions: 22″ dia x 61″ H (56 x 155 cm)
