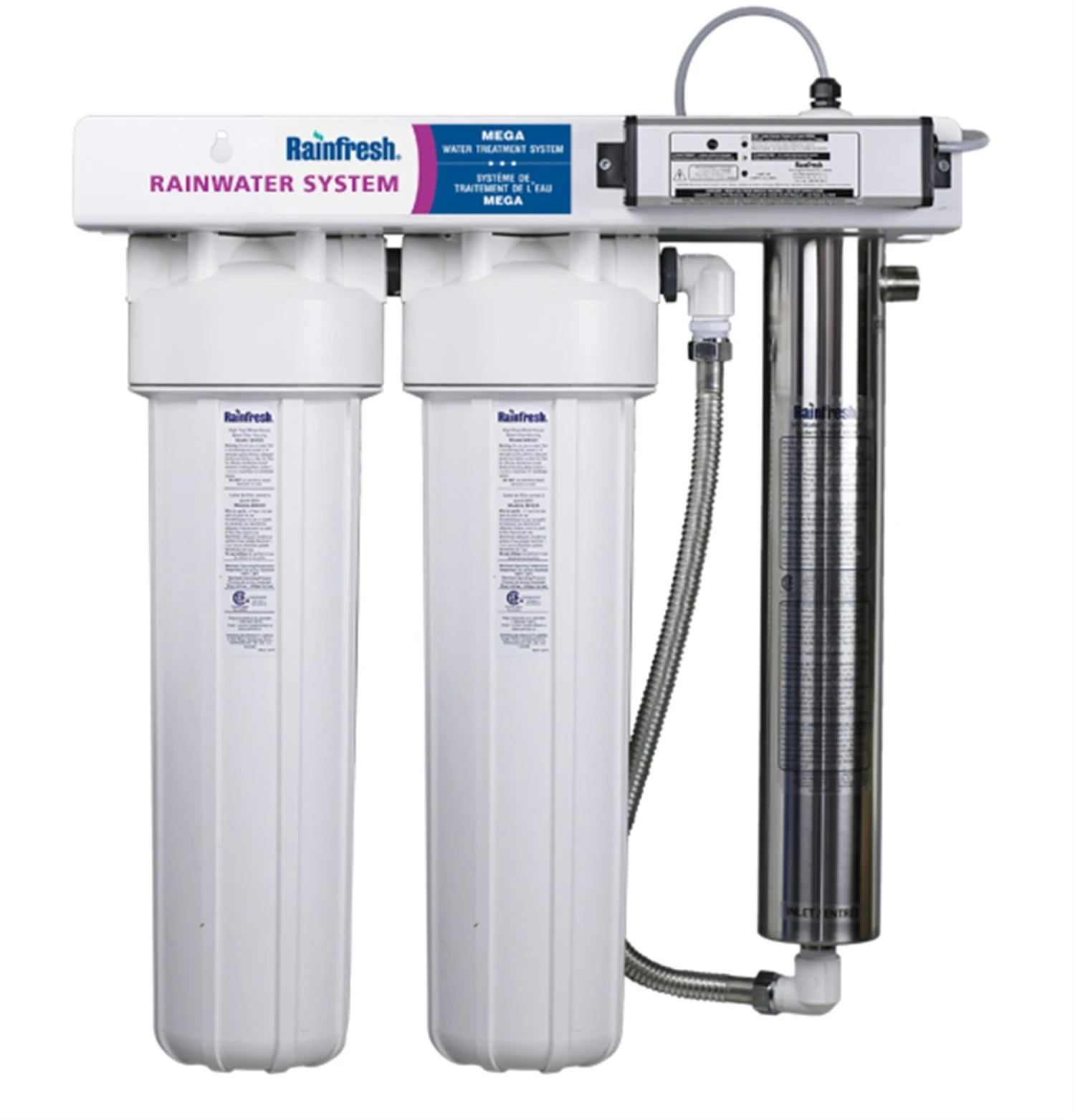

RAIN WATER TREATMENT SYSTEM

Advanced main line water purification system designed to convert rain water collected from roof tops, cisterns or other areas into clean, safe drinking water for the entire home
Reduces sediment, dirt, rust and other particles in the water, down to 1 micron
Improves water taste and odour
Kills/inactivates disease causing microorganisms like bacteria, viruses, coliform, E. coli etc, making rain water safe to drink

Max water flow rate – 8 GPM (30 LPM)
Connections: 1″ inlet, 3/4″ outlet
Electrical requirement: 110V AC

INSTALLATION CAUTIONS
* Installation must conform to all local and state plumbing codes and regulations. Please read carefully the
individual instruction sheets of the filters and the UV system before proceeding with installation.

* Do not exceed Maximum Pressure = 100 psi (690 KPa). If water pressure surges, or will at any time exceed
the 100 psi maximum, a pressure regulator must be installed before the filter (recommended regulator
setting is 75 psi or less) along with a water hammer arrestor to prevent potentially damaging shocks caused
by water hammer.

* Do not subject the system to freezing temperatures

* Do not install system in direct sunlight or where system is exposed to harsh chemicals or may be subjected
to being struck by moving equipment, carts, mops or any other item that may cause damage.

* ALLOW a minimum of 2 feet under the housing to allow for filter replacement.
