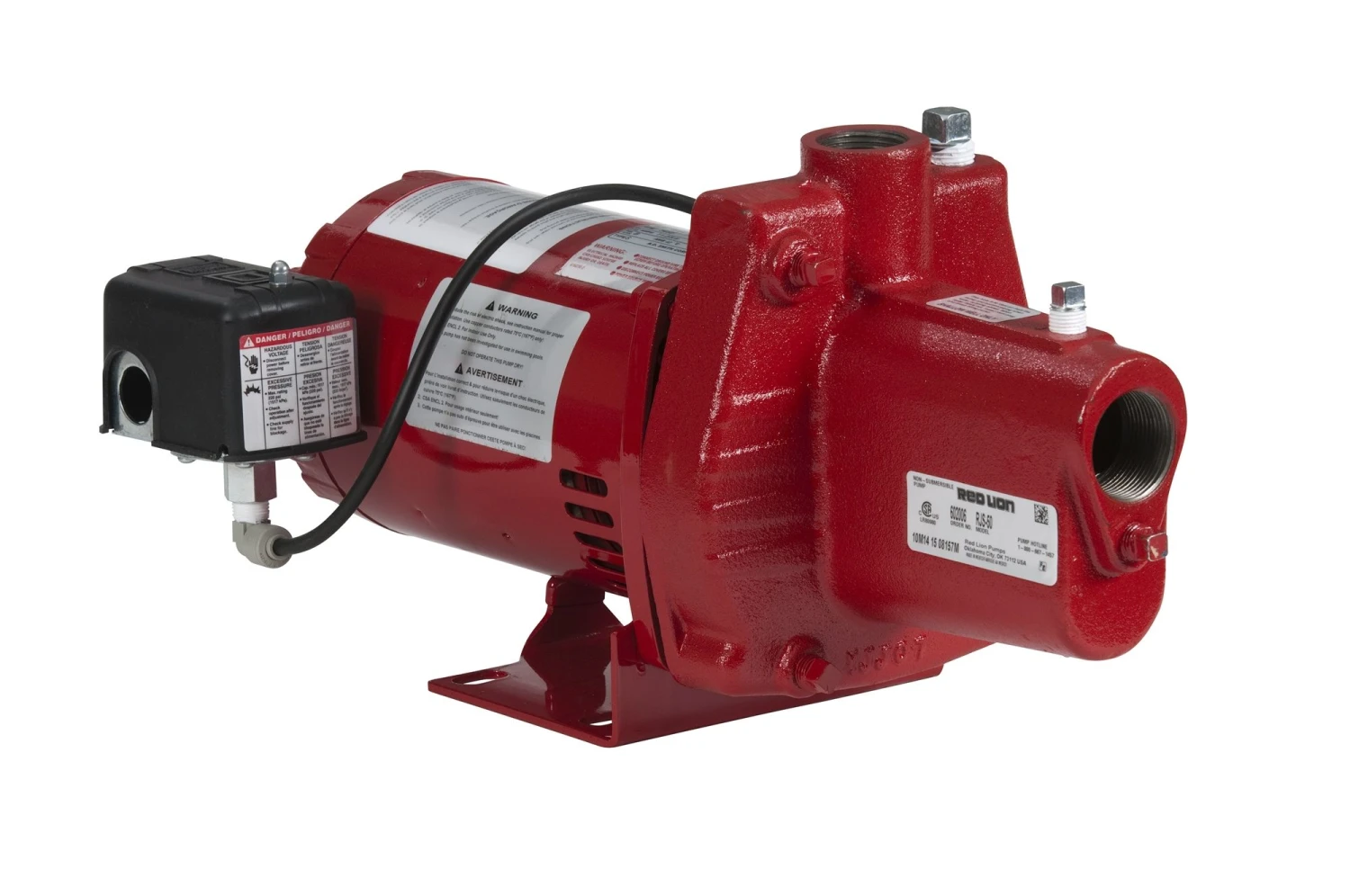

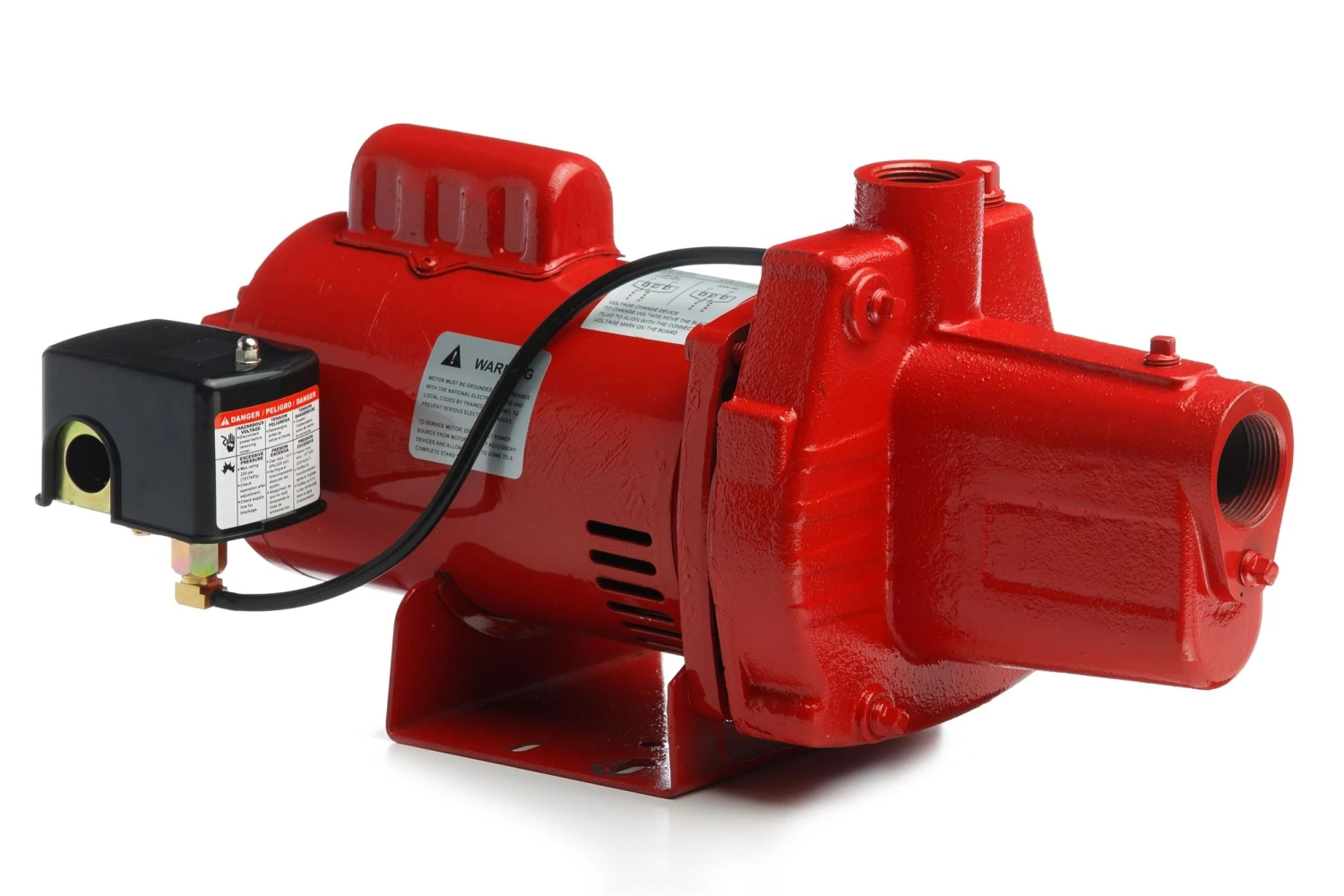

Red Lion® 1 HP Shallow Well Jet Pump

Red Lion brand
1 HP shallow well jet pump
Ideal for the supply of fresh water to rural homes, farms and cabins that have suction lifts down to 25’
Rugged cast iron casing
Heavy-duty, 115/230 Volt motor
Includes factory pre-set 30/50 pressure switch
Glass-filled thermoplastic impeller and diffuser.

• 2 year warranty

1 HP
Dual voltage: 115/230 Volts
16.4 Amps at 115 Volts
8.2 Amps at 230 Volts
1-1/4 in. intake
1 in. FNPT discharge
Gallons per minute at 5 ft. suction lift:
20 PSI = 24.8 GPM
30 PSI = 23.2 GPM
40 PSI = 16.5 GPM
50 PSI = 9.5 GPM
60 PSI = 3.4 gpm
